CD V-138 Pocket Dosimeter Prototypes (1959, 1960)

The CD V-138 had the lowest exposure range of the various CDV pocket dosimeters: 0-200 milliroentgens. Since measurements this low didn't serve much of a civil defense purpose, the CD V-138 was primarily intended for use in training. Approximately 220,000 of these were produced.

CD V-138 Prototype Dosimeters
CD V-138 Prototype Dosimeters

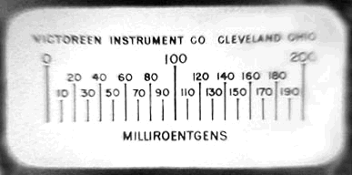

A prototype of the CD V-138 pocket dosimeter produced by the Victoreen Instrument Company and donated to the ORAU collection by the Federal Emergency Management Agency. The typed paper label on the dosimeter barrel reads: "V-138 Prototype Victoreen 2-18-59 Approved 5-22-59." Size: 4" long, 1/2" diameter.

CD V-138 Prototype Dosimeters
CD V-138 Prototype Dosimeters

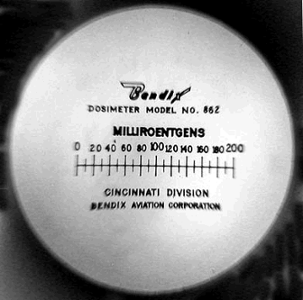

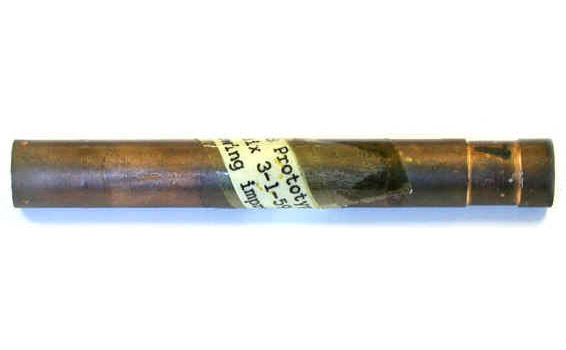

A prototype of the CD V-138 pocket dosimeter produced by Bendix and donated to the ORAU collection by the Federal Emergency Management Agency. The typed paper label on the dosimeter barrel reads: "V-138 Prototype Bendix 3-1-59 showing improved optics." Copper barrel. Size: 4 1/8" long, 1/2" diameter.

CD V-138 Prototype Dosimeters
CD V-138 Prototype Dosimeters

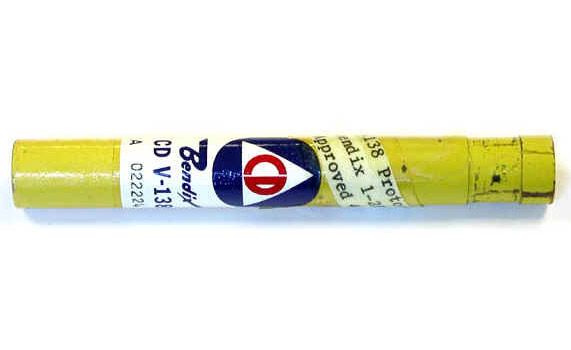

A prototype of the CD V-138 pocket dosimeter produced by Bendix and donated to the ORAU collection by the Federal Emergency Management Agency. The typed paper label on the dosimeter barrel reads: "V-138 Prototype Bendix 1-28-60 Approved 4-4-60." Size: 4 1/8" long, 1/2" diameter.

Donated by the Federal Emergency Management Agency courtesy of Carl Siebentritt.
